Electromagnetic clutches
Electromagnetically engaged clutches are suitable for remote control, either as multi-disc clutch or as a one-face clutch, depending on the execution type. Mehrscheibenausführungen sind nur für den Einbau in Getriebe (Öllauf) geeignet. Observe the no-load power.
One-face clutches are suitable for running with oil and running dry (no residual torque)

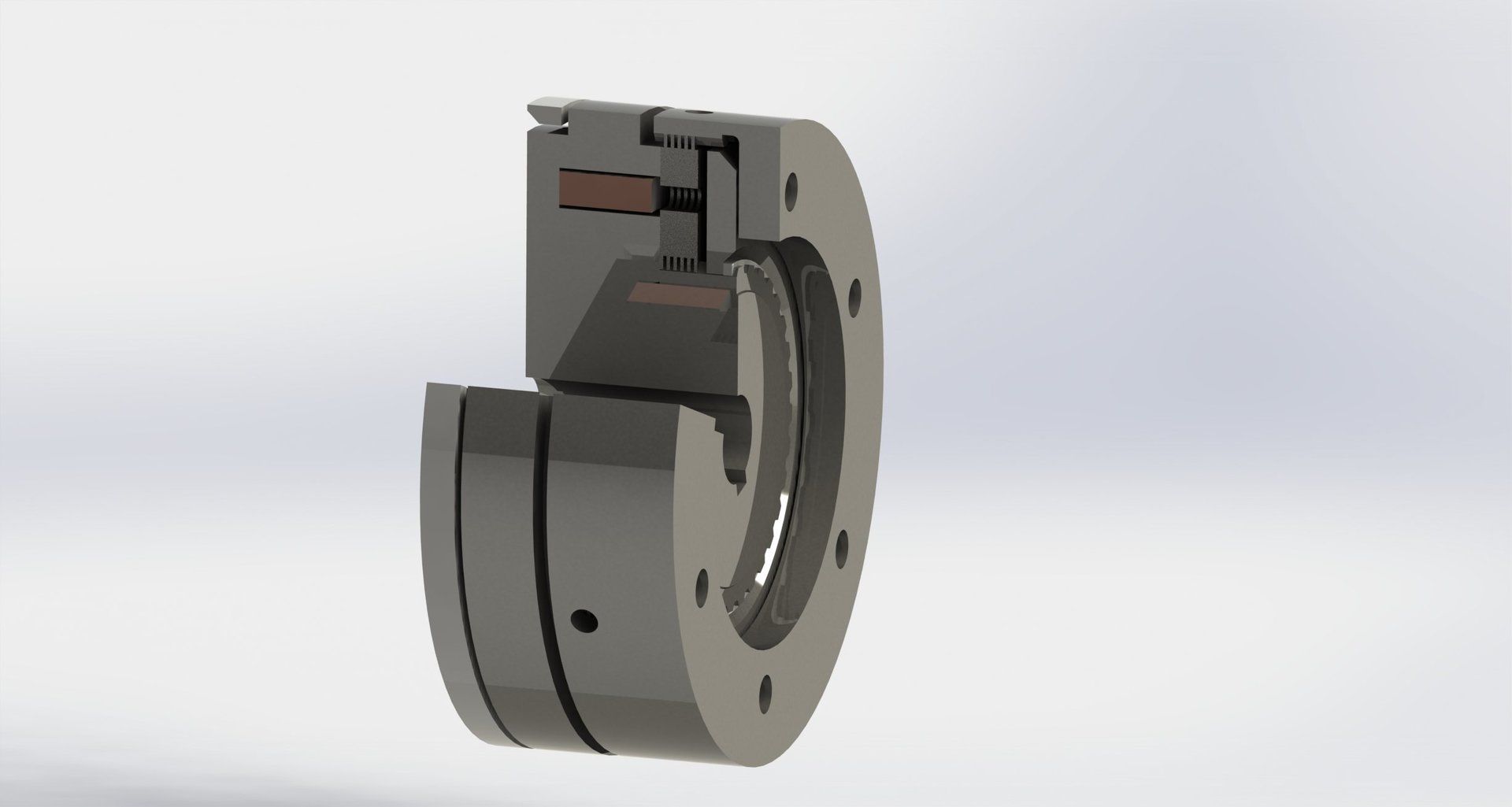

TYP 11
Electromagnetic multi-disc clutches with magnetic flux, with slip ring
Electromagnetic clutches with magnetized disc stacks. Only oil runs are possible here. oil viscosity must be observed. Power supply via Slipring
Application area: Gearbox in tool machines, specialized machines, special gear units
Torque wet run (Nm): 60 - 4300
Details
Bore diameter:
12 mm - 110 mm
Outside Diameter internal flange housing : 90 mm - 250 mm
Outside Diameter external flange housing : 115 mm - 295 mm
Length: 32 mm- 88 mm
Larger and smaller dimensions on inquiry

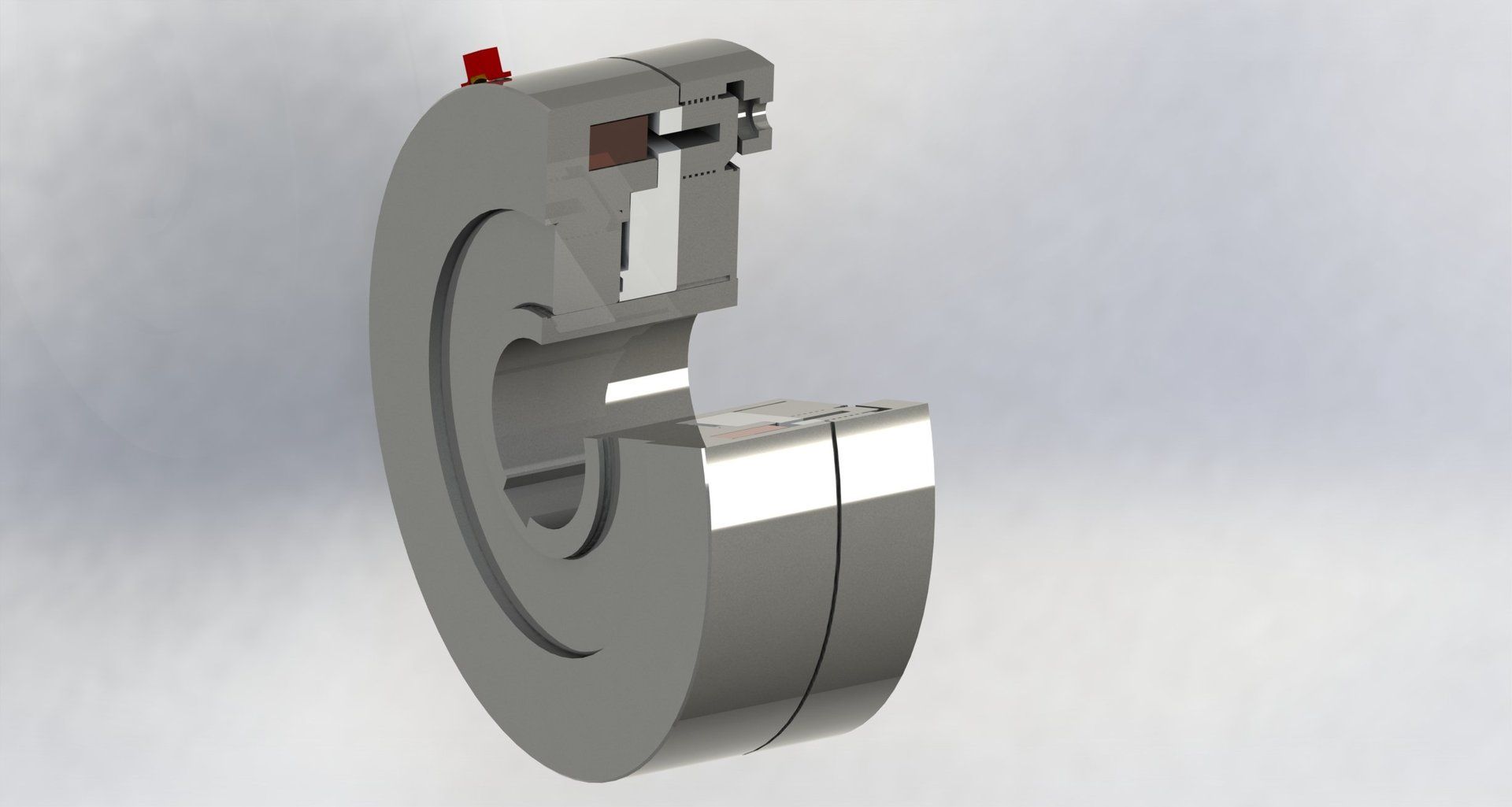

TYP 70
Electromagnetic multi-disc clutch with magnetic flux & stationary supply
Electromagnetic clutches with magnetized disc stacks. Only oil runs are possible here. oil viscosity must be observed.
Application area: Gearbox in tool machines, specialized machines, special gear units
Torque wet run(Nm): 50 - 4300
Details
Bore diameter :
12 mm - 107 mm
Outside Diameter internal flange housing : 100 mm - 250 mm
Outside Diameter external flange housing : 140 mm - 295 mm
Length : 41 mm- 100 mm
Larger and smaller dimensions on inquiry
TYP 14
Electromagnetic multi-disc clutches without magnetic flux, with slip ring
Disc combination: Steel/Steel sintered, Power supply über Slipring. Wet and dry run possible. Usage: the units need to be adjusted to fit operation before usage. No automatic adjustment on wear.
Power supply: dry run coal, oil run: copper brush.
Suitable for oil and dry running.
Application are: Woodworking machinery, textile machinery, printing presses, etc.
Torque wet run (Nm): 17 mm - 210 mm
Details
Torque dry run (Nm): 36 mm - 4600 mm
Bore diameter:
12 mm - 115 mm
Outside Diameter internal flange housing : 96 mm - 330 mm
Length: 41 mm- 100 mm
Larger and smaller dimensions on inquiry

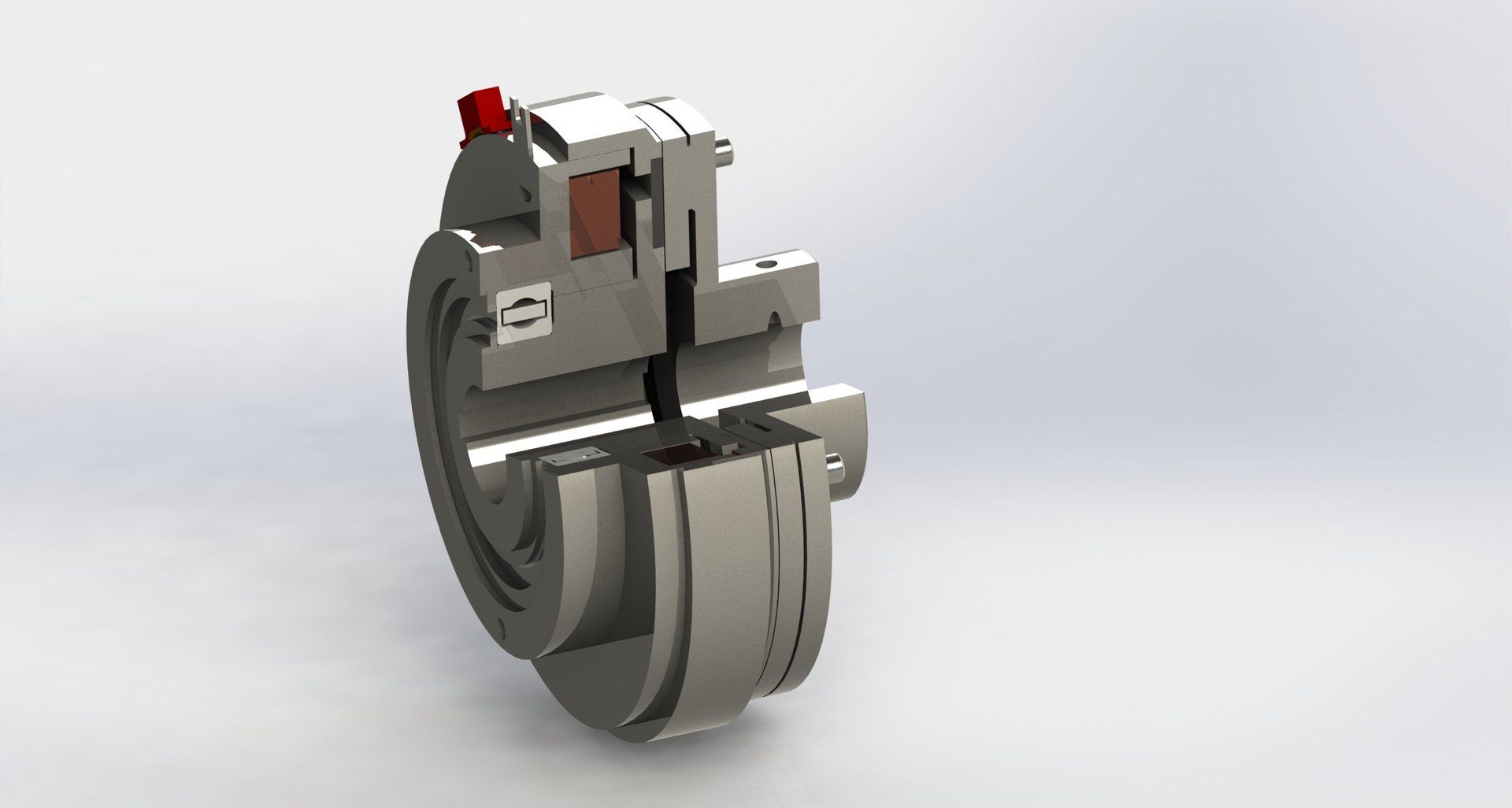

TYP 68
Electromagnetic one face clutch
Torque dry run (Nm): 2 mm - 600 mm
Bore diameter: 8 mm - 80 mm
Outer Diameter :
45 mm -264 mm
Length: 27 mm- 64 mm
Larger and smaller dimensions on inquiry
TYP 45
Electromagnetic tooth clutch with stationary supply
Like Type 55, but with bobbins mounted on ball bearings, stationary power supply via connector. Can only be engaged during downtime, face toothing possible analogue to type 55.
Application area:Printing presses, textile machinery
Torque dry run (Nm):
125 mm - 12.200 mm
Bore diameterr:
18 mm - 85 mm
Outer Diameter: 62 mm - 265 mm
Length : 40 mm- 127,5 mm
Larger and smaller dimensions on inquiry

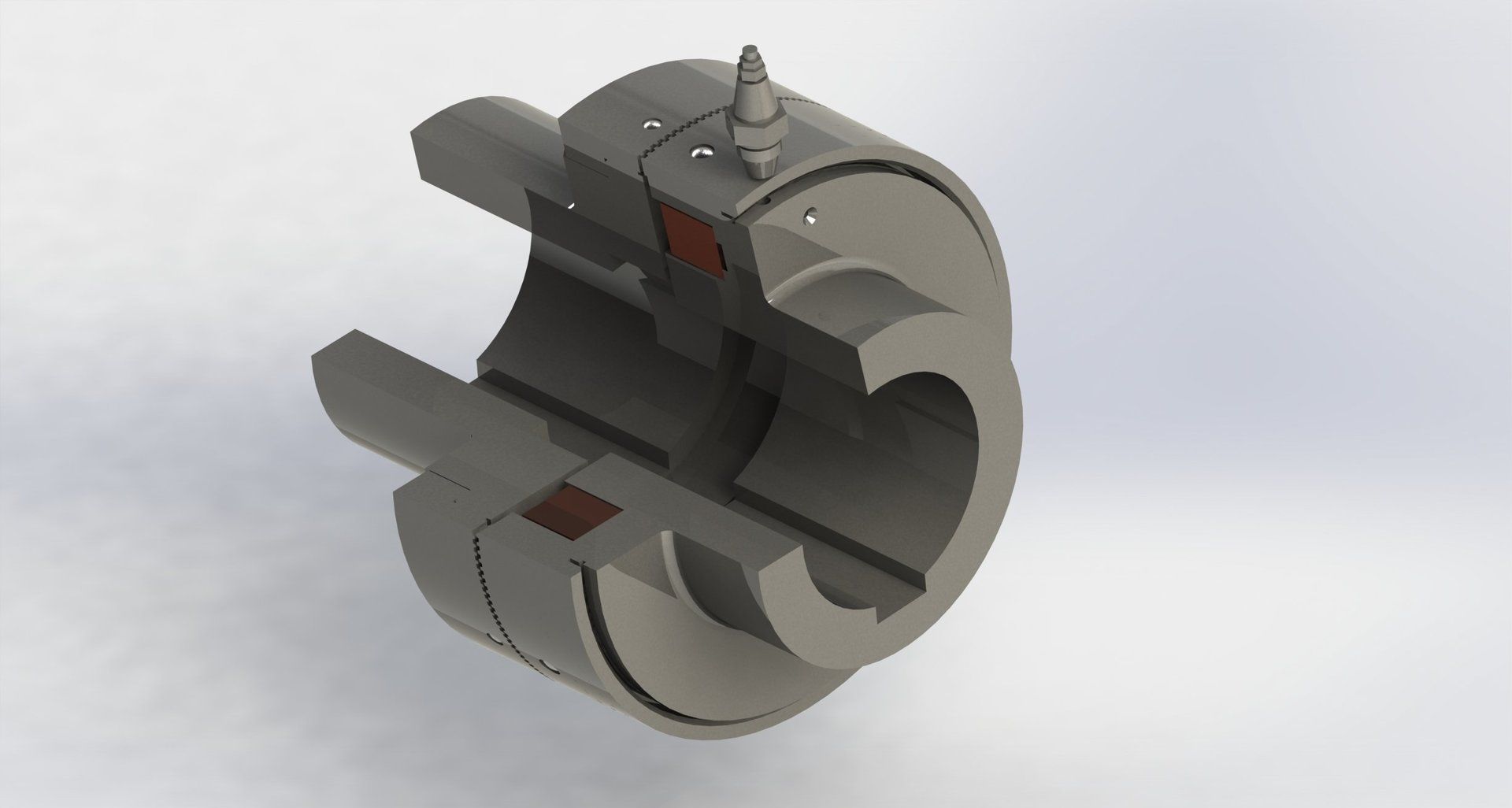

TYP 55
Electromagnetic tooth clutches with slip ring
With slipring, oil and dry running.
Torque wet run Nm): 40 mm - 6000 mm
Details
Torque dry run (Nm): 40 mm - 6000 mm
Bore diameter:
10 mm - 110 mm
Outer Diameter:70 mm - 262 mm
Length: 28 mm- 89 mm
Larger and smaller dimensions on inquiry
