Slip clutches
Slip clutches safeguard within drives and prevent torque overshoots Disc version steel/steel sintered dry running, good but limited emergency running properties. Slip start can be used via multiple possibilities to switch off.
TYP 02

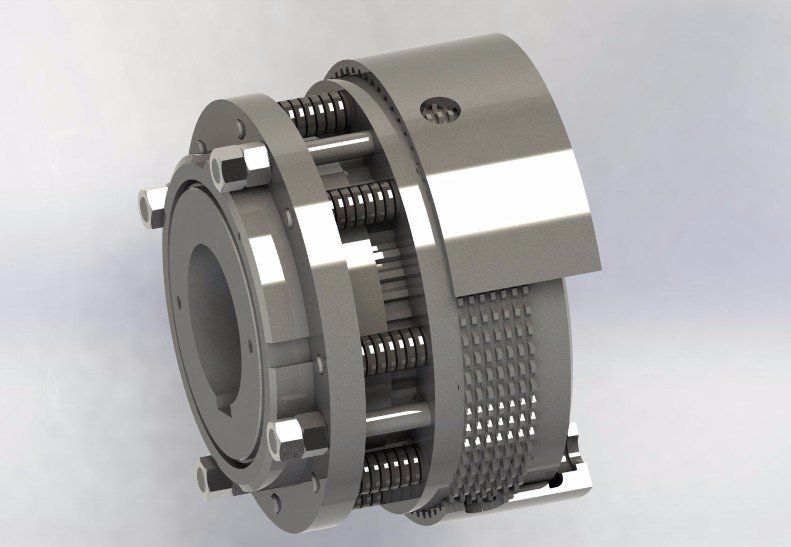

Multi-disc slip clutch
The steel/steel sintered discs are pressed together via disc springs, arranged in form of spring stacks. These disc springa have a flat spring characteristic curve. The spring tension is set via a central adjusting nut up to 380 Nm transferable torque.
Torque wet run (Nm): 6 - 87700
Detailinfos
Torque dry run (Nm): 14 - 193000
Bore diameter:
10 mm - 195 mm
Outside Diameter internal flange housing: 50 - 290
Outside Diameter external flange: 80 - 350
Length: 28 mm- 350 mm
Larger and smaller dimensions on inquiry
